| 力: | 19000W | 音量: | 8-12 l |
|---|---|---|---|
| 電圧: | 220 v | ガスタイプ: | NG 2000PA/LPG 2800PA |
| 水圧: | 0.02Mpa-0.8Mpa | 製品サイズ: | 530*330*143 ミリ |
| パッケージサイズ: | 675*500*200 mm | 防水定格: | IPX2 |
| 水温偏差: | ±1 ℃ | 接続サイズ: | G1/2」 |
| 効率: | 84%以上 | 定格熱入力: | 20kw |
| 正味重量: | 9 kg | 総重量: | 10kg |
| 排気方式: | バランスの取れた排気タイプ | ||

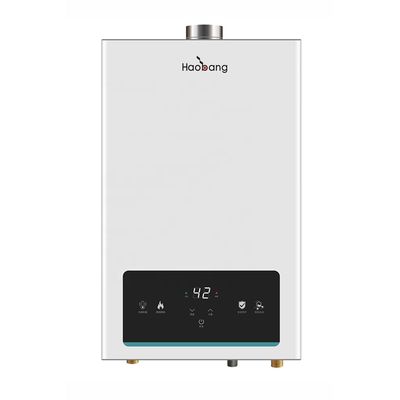

| ハイライト: | Electric and Gas Power Flue Gas Water Heater,Touch Panel Control Gas Water Heater,220V Constant Temperature Water Heater |
||
These liners help to direct the flue gasses into the outside atmosphere. Chimney liners are also responsible for stopping lethal carbon monoxide gas from seeping into your home.
| Capacity | 10L/Min | Exhaust Type | Balanced Exhaust Type |
| Connection Size | G1/2" (Gas/Inlet/Outlet) | Efficiency | Over 84% |
| Gas Type | LPG / NG (Optional) | Product Size | 530*330*143 MM |
| Gas Pressure | LPG(2800Pa)/NG(2000Pa/1300Pa) | Packing Size | 675*500*200 MM |
| Working Water Pressure | 0.025-0.8 Mpa | N.W/G.W | 9/10 kg |
| Rated Heat Input | 20KW | Other Optional Size | 12L |
| Hot Water Supply L/Min △t 25°C | Rated Heat Load | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
|---|---|---|---|---|
| 10L/12L | 20KW/24KW | 530*330*143 | 675*500*200 | 410/980 |
| 14L/16L/18L | 28/32/36KW | 550*350*169 | 675*505*220 | 370/880 |
Zhongshan Hobun Electric & Gas Appliances Co.,Ltd. is a manufacturer specializing in Electric & Gas Appliances since 1997. Locating in Dongfeng Town, Zhongshan City. Our main product is gas water heater, gas boiler and gas stove. Our company covering over 7,000 square meters, annual output over 200,000 units. We have certificate of ISO9001, CE, COC, CCC etc. have experienced and skillful engineers and works. Because of our good quality and profession, we got good reputation from our customer and have our product exporting over 50 countries like Russia, Romania, Mexico, America, Australia and so on.
We are a manufacturer specializing in gas water heater, gas stove, gas boiler, established in 1997.
100pcs /per model.
Depends on models, Sample 5-20days.
Yes, OEM is welcome.
The delivery time is 30-35 days after order was confirmed and received deposit.
T/T 30% deposit in advance 70% balance against the copy of B/L.
Shipping port: Zhonshan/Guangzhou/Shenzhen
More question please contact us!!!
